CP Carrillo - Pistons - V-Rod

Upgrade your pistons to a forged set from CP Carrillo. Designed to suit 2008-2017 V-Rod models equipped with Stock Bore/Stock Stroke.

Specs as follows:

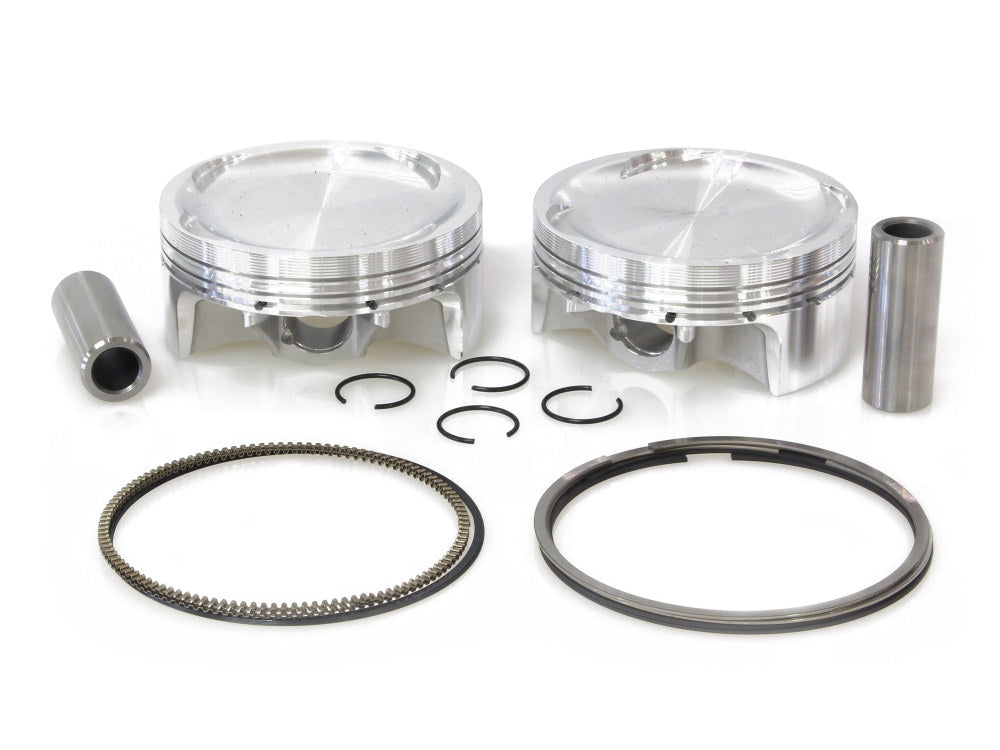

Manufacturer Part No: M5090 - Standard Pistons with 9.5:1 Compression Ratio to suit V-Rod 2008-2017 Stock Bore/Stock Stroke

• Bore: 4.134in.
• Stroke: 2.835in.
• Fully CNC machined & forged from high strength 2618 alloy
• Balanced to +/- 1g
• Double forced pin oilers
• Designed for maximum performance, horsepower & reliability
• Complete kit includes 2 x pistons, ring sets, wrist pins & clips
• 9.5:1 is a lower compression rate than standard (11.5:1) & suitable for boosted applications

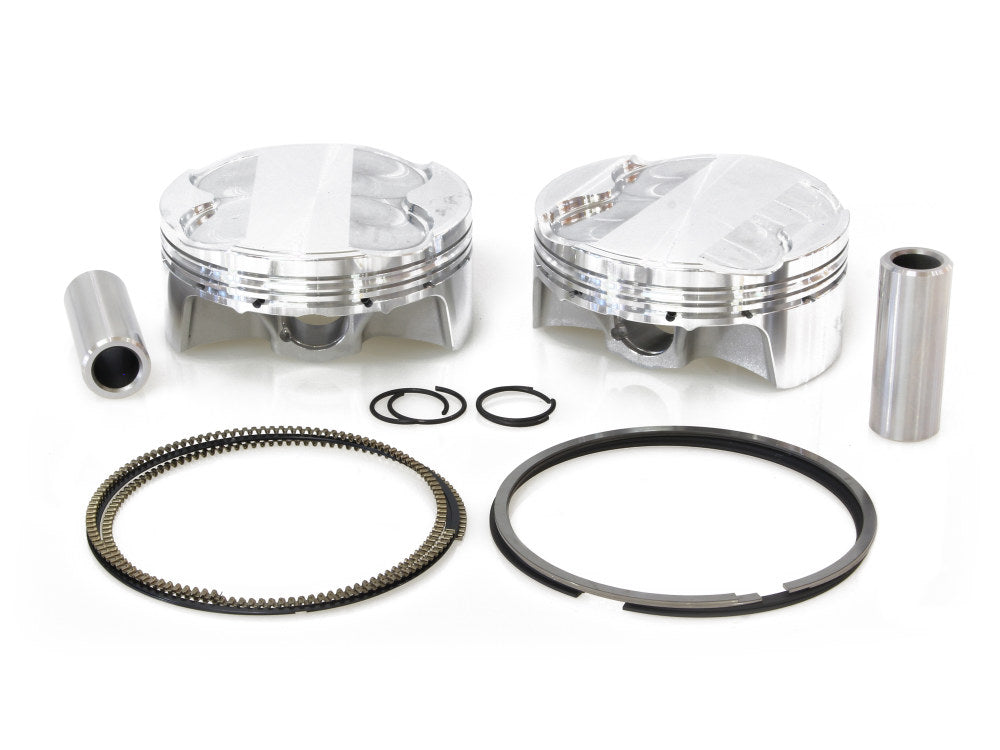

Manufacturer Part No: M5090-12 - Standard Pistons with 12.0:1 Compression Ratio to suit V-Rod 2008-2017 Stock Bore/Stock Stroke

• Bore: 4.134in.
• Stroke: 2.835in.
• Fully CNC machined & forged from high strength 2618 alloy
• Balanced to +/- 1g
• Double forced pin oilers
• Designed for maximum performance, horsepower & reliability
• Complete kit includes 2 x pistons, ring sets, wrist pins & clips
• 12.0:1 is a higher compression rate than standard (11.5:1) & suitable for stock bore, stock stroke motors

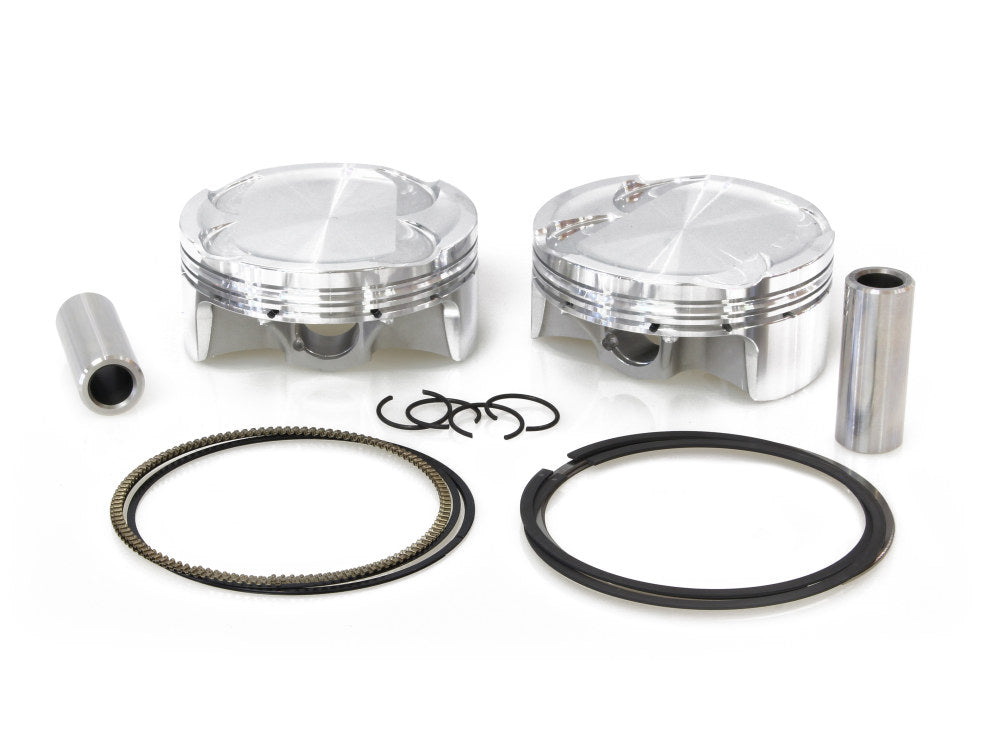

Manufacturer Part No: M5090-14 - Standard Pistons with 14:1 Compression Ratio to suit V-Rod 2008-2017 Stock Bore/Stock Stroke

• Bore: 4.134in.
• Stroke: 2.835in.
• Fully CNC machined & forged from high strength 2618 alloy
• Balanced to +/- 1g
• Double forced pin oilers
• Designed for maximum performance, horsepower & reliability
• Complete kit includes 2 x pistons, ring sets, wrist pins & clips
• 14.0:1 is a higher compression rate than standard (11.5:1) & suitable for stock bore, stock stroke motors

PLEASE NOTE:

• Follow ring end gap & piston to cylinder clearances as per supplied CP Carrillo instructions
• Installation may require additional components depending on application

Be sure to contact the DarkSide team for expert advice on fitment for your bike before ordering.
